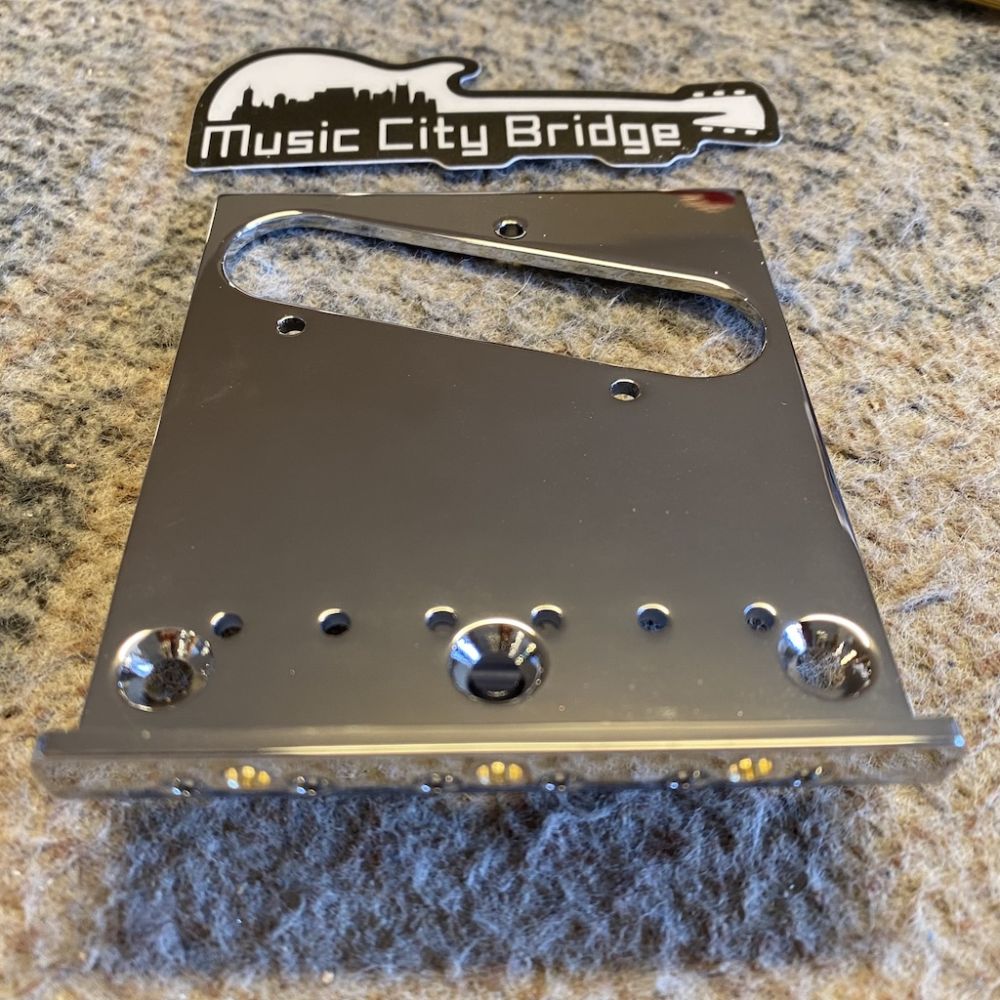

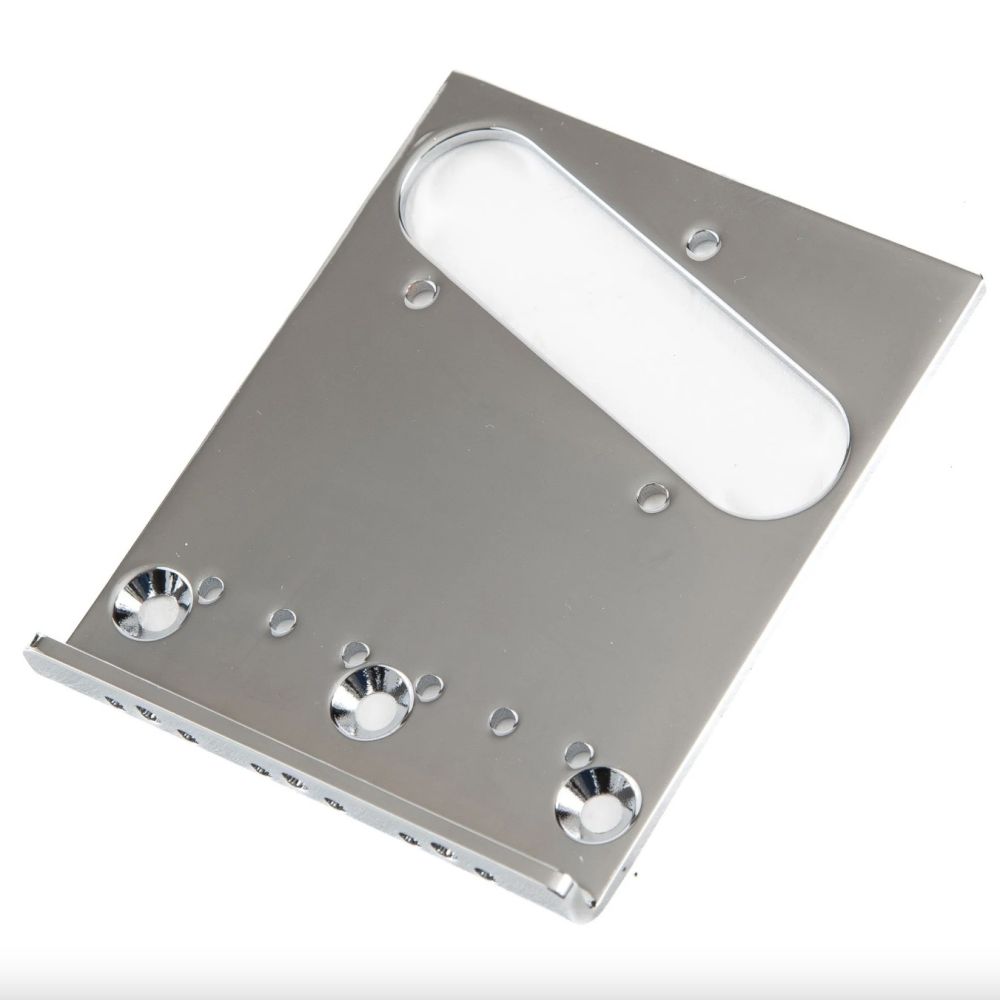

3-Screw Mounting 623 Tele Conversion Plate

Convert your 6-Saddle Tele Plate to a 3-Barrel setup using the 623 Tele Conversion Plate.

A lot of people asked if it was possible to use to the 3-barrel saddles on a modern flat plate, so we searched the market and could not find a product that allowed for an easy conversion without modification. So we made the 623 Tele Conversion Plate.

The 623 Tele Conversion Plate is designed as a direct replacement for both 3-bolt and 4-bolt mounted plates - no drilling required.

Note: Both plates can be either top-loaded or strung-through-body.

Before ordering: Please check if your bridge plate has 3 or 4 mounting screws and select the corresponding option from the drop-down.

Features:

• Convert from 6-saddle to 3-barrel saddle setup
• Direct replacement- no drilling required
• Also a direct replacement for Ash Tray plates

Specs:

• Material: Nickel-Plated Brass
• Length, top-to-bottom:
  • 4-Screw: 3.7"
  • 3-Screw: 3.83"
• Width, side-to-side: 3.13"
• Plate thickness: .09"
• Mounting screw spacing (from center screw)
  • 4-Screw: .85"
  • 3-Screw: 1.28"

3-Bolt Specs:

4-Bolt Specs:

Groove Master Saddles sold separately.
