Using the popular ‘50s-style wiring scheme, this kit is the perfect upgrade for your Epiphone Casino or Gibson / Epiphone ES-335 or similar models with ES-style control layout. ‘50s wiring changes the location of the tone capacitor so high frequencies are more or less left intact with changes to the volume control, while there is a small decrease in volume when rolling down the tone control.

Please Note: This kit is built with US-spec pots, Epiphone Casinos and other import models come stock with metric-sized pots, you may need to ream the holes for your controls (AVOID USING A DRILL BIT) to accept the slightly larger US-spec pots (3/8" shaft diameter, 24 spline) and purchase US-spec knobs.

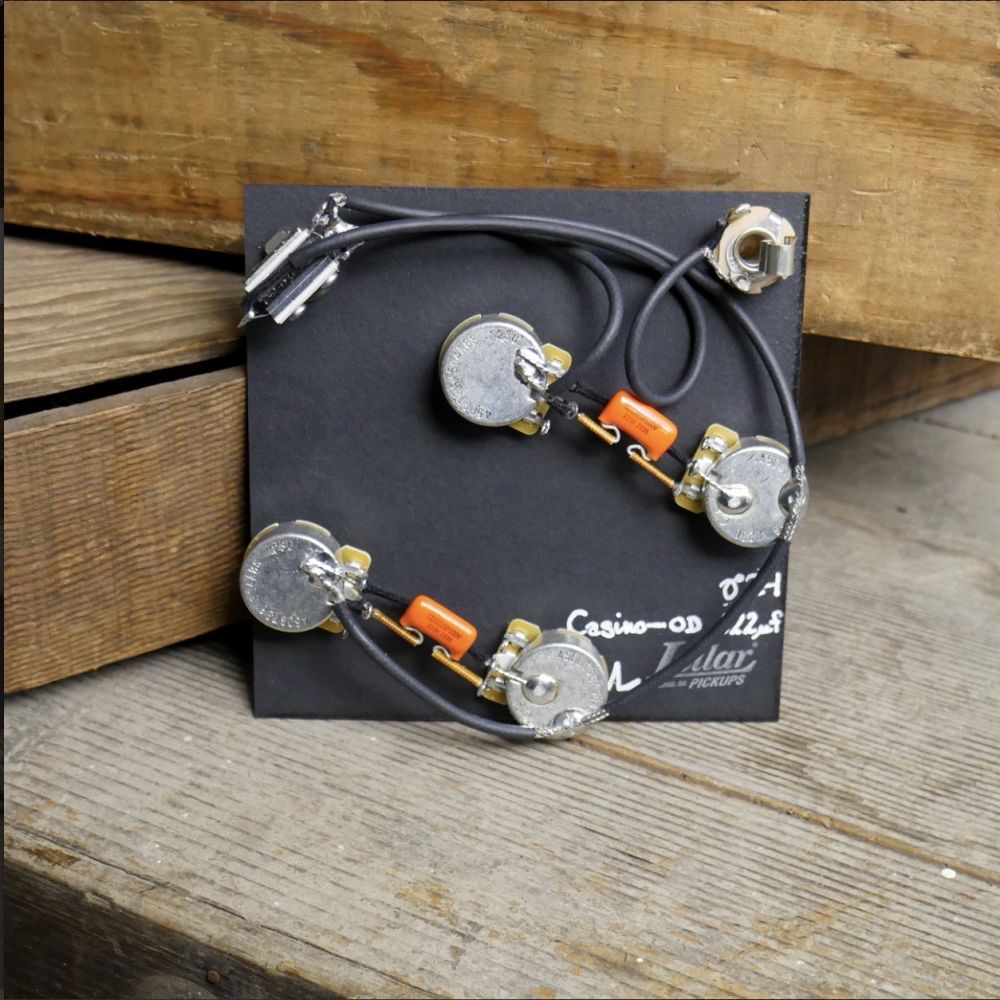

Includes:
(1) Wiring Diagram, Download HERE
(4) CTS 500k Short Split Shaft Potentiometers
(1) Switchcraft 3-Way Switch
(1) Switchcraft 1/4" Mono Output Jack
(2) Orange Drop 022µF Capacitor

Control Layout:

• Neck Volume and Bridge Volume
• Neck Tone and Bridge Tone
• 3-Way Switch

• Not Included:
  Pickguard or Knobs
