UDO ROESNER AMPS DA CAPO 75
Varastossa 2 kpl
Udo Roesner, who has been designing acoustic instruments for over 30 years and is also known as the founder of AER Amps, has launched a new brand. The first model to introduce Udo Roesner Amps is Da Capo 75. A combo amplifier that boasts the best performance and specifications in a compact housing.
Udo Roesner Amps products are designed and developed by Udo Roesner himself at MARco-labs in Germany and France. By producing in Indonesia, which has a reputation for musical instrument production, we have achieved reasonable prices while maintaining quality.

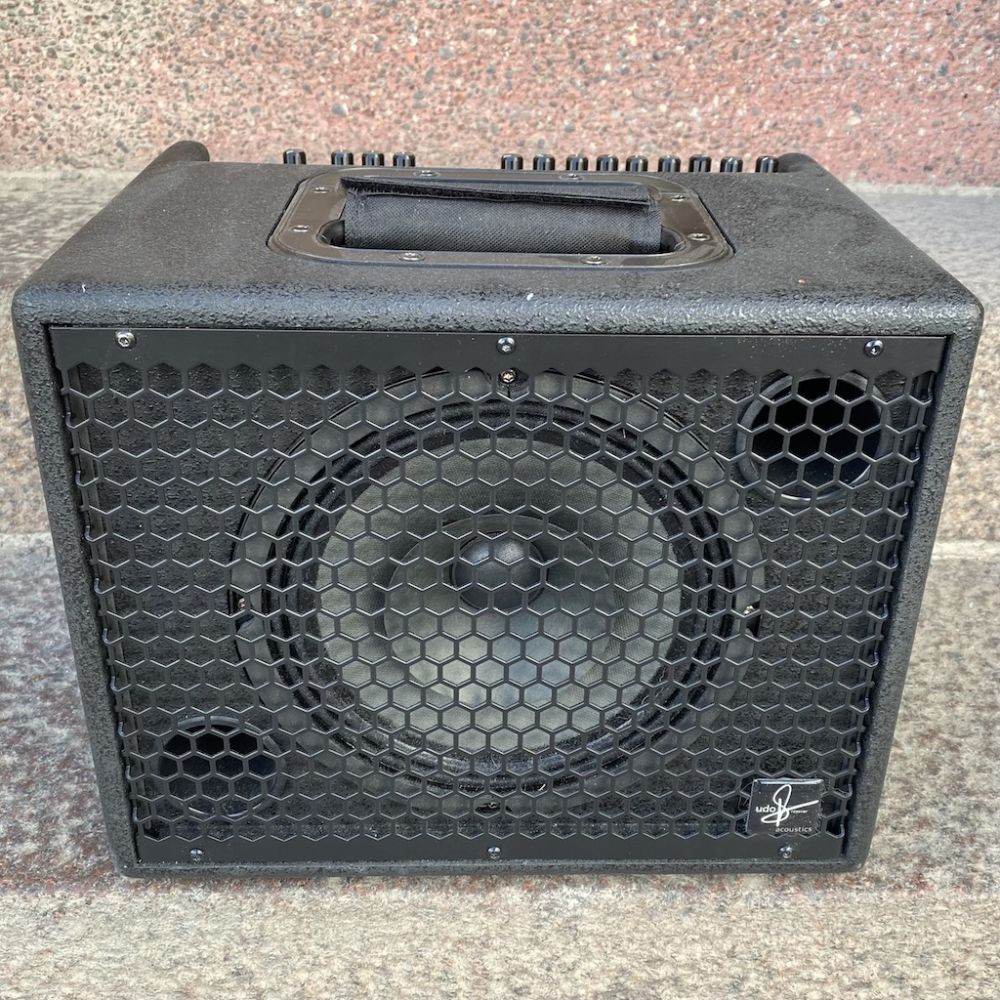

A 2-channel acoustic instrument combo amplifier equipped with custom-made 8-inch twin cone type speakers. It boasts a 75W output power in a compact housing and has six types of effects. Optimal size, power and performance. The ideal amplifier for acoustic instruments.
A newly redesigned sound that incorporates the know-how cultivated over many years of amplifier production
The Da Capo 75 features a more optimized bass and mellow but clear midrange compared to conventional amplifiers

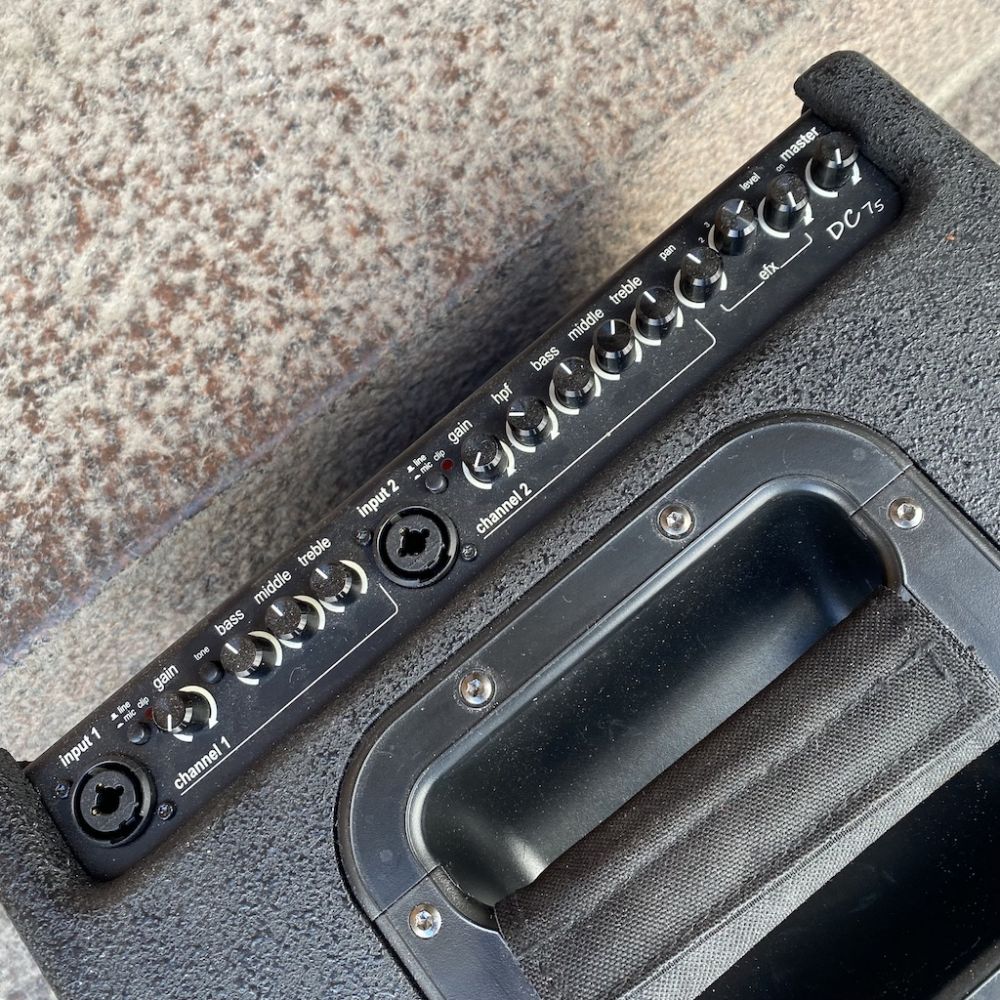

2 channel specifications:
Each channel supports mic / line (with combo jack), 3-band EQ, and 6 effects.

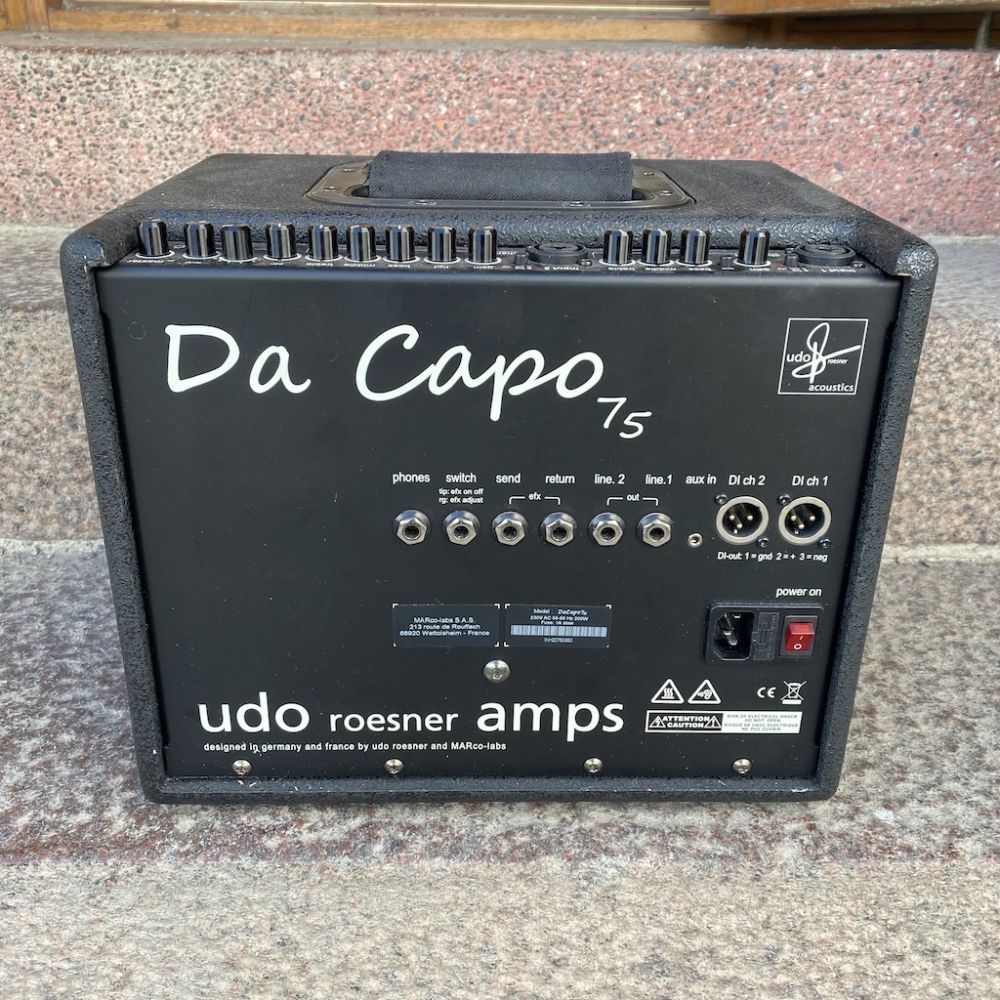

Abundant input / output terminals:
Equipped with two channel independent DI outs, two line outs with different output levels, AUX input, phantom power, high pass filter, headphone out, etc.
- input 1 / input 2 common: XLR & 1/4 inch TRS phone combo jack
- line mode: High impedance jack for musical instruments (directly connected from pickup), unbalanced, line level
impedance: 2.2MΩ
Sensitivity: 22mV (-33dBV) * Attenuation can be set by internal jumper
Equivalent noise level: 1uV (-120dBV) A -Weighted
- mic mode: XLR balanced / phone jack unbalanced
impedance (XLR balance): 1.2kΩ
impedance (phone jack unbalanced): 2.7kΩ
sensitivity: 3.3mV (-50dBV)
voice filter: -10dB @ 270Hz
equivalent noise level: 0.8uV ( -122dBV) A-Weighted
phantom power (XLR only): 48V max 10mA (with short protection circuit)
-
- return: 1/4 inch phone jack, unbalanced, premaster
Output
- phones: 1/4 inch TRS stereo phone jack
Impedance: 470Ω
* Mono jack cannot be used
* Output from speakers is muted when headphones are connected
- send: 1/4 inch phone jack, unbalanced, premaster
Output voltage: 1.4V (+ 3dBV)
- line out 1 / line out 2: 1/4 inch phone jack, unbalanced, preamp out
Output voltage 2: 1.74V (+ 3dBV)
Output voltage 1: 0.33V (-4.6dBV)
- DI-out 1 / DI-line out 2: 1 XLR balance, pre-master, post-EQ / effect
Output voltage: 140mV (-17dBV)
(1 = ground / 2 = hot / 3 = cold)
Foot switch
- footswitch: 1/4 inch TRS stereo phone jack
- Latch type dual foot switch connected
(Tip = on / off of built-in effect / Ring = parameter setting tap n 'delay / sleeve = ground)
EQ
-
- channel 1
bass: 8dB @ 100Hz (shelf type)
middle: 6dB @ 800Hz
treble: 8dB @ 10kHz (shelf type)
-
- channel 2
hpf filter: 40Hz-350Hz
- channel 2
middle: 6dB @ 800Hz
treble: 8dB @ 10kHz (shelf type)
Effect
- effect presets:
1-reverb short
2-reverb long
3-chorus
4-custom delay
5-my delay
6-tap n 'delay
- external effect: parallel effect loop
- efx pan: effect amount setting for internal effects / internal effects)
| Power amplifier output | 75W / 4Ω |
| Speaker system | 8 inch (200mm), twin cone full range |
| Cabinet | 12mm plywood |
| Body Finish | Sputter finish with black polyester |
| Power consumption | Up to 200W |
| Power supply | 100VAC (50 / 60Hz) |
| Dimensions | 265mm (H) × 325mm (W) × 245mm (D) |
| Body weight | 7.5kg |
| Accessories | 24.9" |
- * Specifications and appearance are subject to change without notice for improvement.
- * All product names and company names are the trademarks or registered trademarks of their respective owners.
