SWART ST-ATOMIC JR COMBO

Ei varastossa

Hinta: 1695,00 169500

Tilapäisesti loppu. Anna sähköpostiosoitteesi niin kerromme sinulle kun tuotetta on taas saatavilla.

5W CLASS A ~ JUST INSANELY BIG TONE w/Reverb
Single-Ended Output - Zero Negative Feedback
100% Tube Circuit - GZ34 or 5Y3 Valve Rectifier
Big Swart Tube Reverb via 12DW7 & Spring Tank
Hot and Clean mode Switch
Powered by choice of 6V6 or 6L6 (shod w/6V6)
JJ 12AX7 - JJ 12DW7 - JJ 6V6GT - JJ GZ34 Rectifier
Point to Point Hand Wired Circuit
Cathode Biased (no need to bias)
Carbon Comp Resistors ~ Mallory Caps
Cloth Hook-Up Wire
Heaters referenced to ground
All Swart Amplifiers employ Star Grounding
4 ohm 1/4" Out - Drive other Speaker/Cabinet
Switchcraft 1/4 inch input and output
CTS Potentiometers
Custom High Quality USA Built Swart Spec Iron
Speaker: 8" Weber Signature ~ 4 ohm

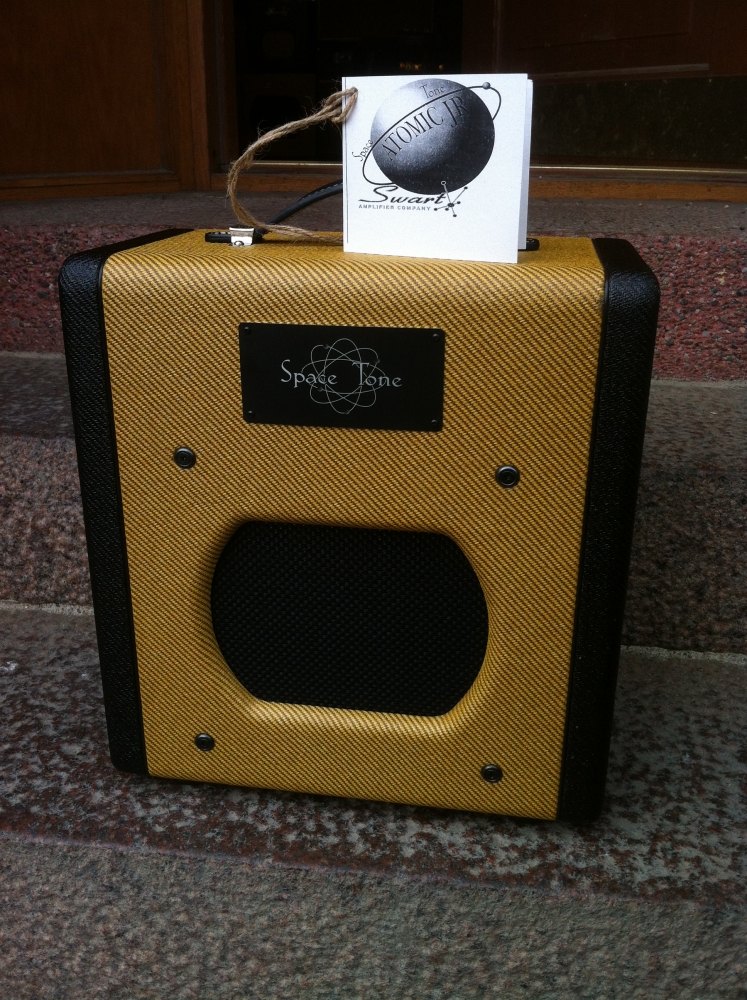

Finger-Jointed, solid Pine Cab w/ Lacquer Tweed Cover
Vintage Jewel Lamp ~ Circuit Fuse Protected
Dimensions: 13 3/4T x 13W x 7 1/4 D @ 14lbs

Like all Swart amps, the circuit is point to point, hand-wired and CATHODE BIASED with no need to mess with adjustments when rolling tubes.

The Atomic Jr has two driver/preamp tubes comprised of one 12AX7 and one 12DW7 feeding either a 6V6 (stock) or 6L6 family power tube.  We also keep the simple tone cut bringing the least complexity, integral in keeping touch sensitivity and transparency.   Of course, the Atomic Jr. relies on tube rectification for PS filtering with a JJ 5AR4/GZ-34 as stock with the ability to run a NOS 5Y3 for more Sag, compression, earlier breakup, and that Brown Sound (it also brings 34v less on the tubes).We want to avoid that harshness that seems to ride along with solid state rectification. Try a vintage 5Y3 for a bit more SAG and less voltage on the power tubes.

It has the same excellent 6V6se 4ohm output transformer and comes stock with the Weber Signature 8 Ceramic.  The tweed covered, finger-jointed pine cab resembles a baby AST with light tweed and dark side panels. Other covering options are available.
If only words could actually convey sound fully; they always fall short to some extent.  And that's where I stand with the Space Tone Atomic Jr, the latest amazing, soulful little amp from the hands of Michael Swart.

The new ST-Atomic Jr starts off with the heart of our ever-popular ST-6V6se with the addition of a year in the making, triode reverb stage utilizing a dedicated 12DW7 fed into a nifty spring tank for surprisingly BIG REVERB, especially for a cabinet this size. Actually, for ANY size cabinet.  (Wait till you hear Greg V's samples ).

The tonal variations and REVERB in this little monster must be be heard to be believed.  Most amps this size attempting reverb and big tone tend to be underwhelming.  Not so with the 14lb Class A ST-Atomic Jr.

The circuit remains amazingly simple, including this reverb stage, and will feature volume, tone, and Swart's patented "Space" reverb.  I've been playing this beast non-stop since the prototype hit my apartment, never to leave.  It's the perfect amp for those craving AST type sound in a package that weighs no more than a ribald ole Tom Cat.

There is a cool switchable gain option in place of the 6V6se feedback switch. When in circuit, the amp has more cleans and take a bit longer to break-up.  It's a slightly more controlled result.  Flip it out of circuit and you have slightly less compression with a more raw take, quicker to get into the fun stuff. Think of it as HOT SWITCH NOW like the good ole Krispy Kreme Donut Shop.
